Concrete Floor Thickness for Optimal Car Hoist Setup

Key Factors to Consider When Installing a Car Hoist in Your Garage

Before installing a car hoist in your garage, it’s crucial to ensure that your concrete floor meets all necessary requirements. A strong and stable foundation is essential for the efficient operation of the hoist, as well as the safety of your vehicles and the personnel using the equipment. Taking the time to prepare properly and strictly following installation guidelines can significantly improve the performance and durability of the hoist, ensuring you have a reliable system for years to come.

Most car hoists require a concrete slab with a minimum thickness of 100mm (4 inches). This thickness is vital as it facilitates the even distribution of weight from both the vehicle and the hoist, thereby minimizing the chances of cracking or sinking over time. For heavy-duty hoists, it is advisable to consider a thicker concrete slab that may go up to 150mm (6 inches) to guarantee optimal performance and ensure safety during use.

Comprehensive Guidelines for Determining the Necessary Concrete Thickness for Your Car Hoist

The thickness of your concrete floor plays a vital role in the safe installation and effective operation of a car hoist. Several critical aspects must be evaluated when deciding on the appropriate depth for your slab to ensure it can adequately support the loads it will face during use. By understanding these factors, you can avoid expensive mistakes and enhance both the safety and functionality of your garage setup.

Assessing Load Requirements for Safe Car Hoist Installation

Car hoists place significant stress on the concrete floor beneath them. Thus, it is essential to understand the total weight that your concrete floor must support. This assessment includes not just the weight of the vehicle but also the added weight of the hoist itself, which can greatly influence the load on the floor.

A typical passenger car usually weighs between 1,500 to 2,000 kg, while the hoist can add an additional 500 to 1,000 kg. Furthermore, it is wise to factor in extra weight as a buffer for safety, ensuring the structure can accommodate unexpected circumstances or loads that may arise during operation.

For most residential garages, a concrete thickness of 100 mm to 150 mm is generally adequate. However, if you plan on lifting significantly heavier vehicles, it may be necessary to consider a thicker slab to guarantee safety and stability during operation.

Consulting with a structural engineer is a prudent decision. They have the expertise to offer tailored advice and assist you in calculating the exact thickness needed based on your specific circumstances and requirements, ensuring safety and compliance with local building codes.

Understanding Different Types of Car Hoists and Their Concrete Thickness Specifications

It is essential to recognize that different types of car hoists come with unique requirements for concrete thickness. Two-post lifts and four-post lifts are two popular choices among homeowners aiming to integrate a car hoist into their garage.

Two-post lifts typically exert pressure on specific points, necessitating a thicker concrete slab, often around 150 mm or more, to effectively handle the concentrated load. This ensures that the slab can manage the specific demands placed upon it without compromising safety.

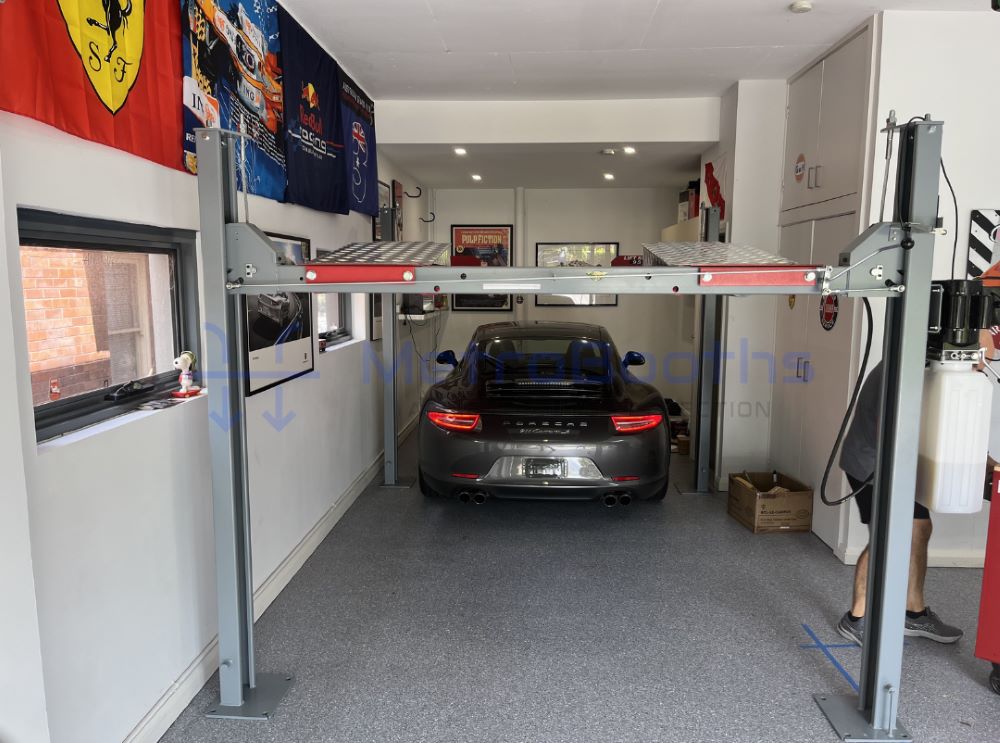

Conversely, four-post lifts distribute weight more evenly across a broader area, allowing them to function effectively with a slightly thinner slab, typically in the range of 100 mm to 125 mm. Recognizing these differences is crucial in your planning and installation process.

Always consult the manufacturer's specifications for the hoist you are considering, as they will usually outline the minimum concrete thickness required for safe operation. Following these guidelines is crucial for ensuring the optimal performance and longevity of your investment.

It’s important to note that these recommendations serve as general guidelines. Your specific needs may differ based on your garage's configuration and the types of vehicles you intend to lift, so customize your approach accordingly.

The Significance of Concrete Strength and Reinforcement for Car Hoist Installations

The strength of your concrete is just as essential as its thickness when planning a car hoist installation. Stronger concrete can often be utilized at a thinner thickness while still providing adequate support for heavy loads. This is particularly relevant when considering the installation of a car hoist, where safety is of the utmost importance.

It is recommended to use concrete with a compressive strength of at least 25 MPa for a car hoist installation. Many industry professionals suggest opting for concrete with a strength of up to 32 MPa for applications involving heavy-duty use and frequent vehicle lifting, ensuring the material can endure the demands of regular operation.

Incorporating reinforcement techniques is critical for significantly boosting the durability and strength of your concrete. The addition of steel mesh or rebar can vastly enhance the overall strength of your concrete floor. As a result, this might allow you to use a thinner slab while still ensuring it can effectively support heavy loads during operation, ultimately leading to cost savings.

For most residential garages, SL82 mesh is a reliable option. It provides sufficient strength for the majority of car hoists without incurring excessive costs. This consideration is vital for homeowners looking to optimize their budget while ensuring safety.

If you have concerns about potential cracking, consider adding fibers to your concrete mix. This addition can help reduce the formation and spread of small cracks over time, thereby enhancing the longevity of your installation and maintaining the integrity of your garage floor.

Critical Factors for Successful Car Hoist Installation and Operation

When installing a car hoist, meticulous site preparation and consistent floor maintenance are crucial for ensuring safety and longevity. By focusing on concrete specifications and proper floor care, you can secure the safe and effective operation of your hoist while protecting your investment and providing peace of mind.

Essential Site Preparation and Concrete Pouring Methods for Car Hoist Installation

Before proceeding with the installation of your car hoist, it is essential to verify that your concrete floor meets all necessary specifications. Most hoists require a slab that is at least 100mm thick and constructed with 3000 PSI concrete. Additionally, the slab must be perfectly level and free of any cracks to ensure optimal performance and safety during use.

For new concrete pours, it is vital to use steel reinforcing mesh and allow the concrete to cure for a minimum of 28 days. Moreover, ensure that the area being poured is larger than the footprint of the hoist to provide adequate support and stability, preventing any future issues that could arise from insufficient support.

Avoid placing the hoist over expansion joints or weak areas of the concrete. If you are uncertain about the strength and integrity of your floor, consulting a professional is highly advisable. They can accurately assess the condition of your concrete and provide reliable recommendations for ensuring safety and performance.

Ongoing Maintenance Tips After Installing Your Car Hoist

Once your car hoist is installed, it is vital to regularly monitor the condition of the concrete surrounding it. Keep an eye out for any cracks, chips, or signs of stress, and address any issues promptly to prevent larger complications that could impact the functionality of your hoist and the safety of your vehicles.

It is essential to clean any oil and fluid spills immediately, as these substances can weaken the concrete over time and lead to structural issues, ultimately jeopardizing the safety and functionality of your hoist. Additionally, consider using protective mats under the lift arms to minimize wear and tear on the floor, thereby prolonging its lifespan.

Regularly check the tightness of the anchor bolts, as loose bolts can cause damage to the concrete and render the hoist unsafe for operational use. This simple maintenance step can help prevent costly repairs and ensure safe usage, protecting your investment over time.

Consider applying a sealant to the concrete to guard against stains and moisture. Such protective measures can significantly extend the lifespan of your concrete floor while also enhancing its appearance, making it a worthwhile investment for any garage owner.

Frequently Asked Questions About Car Hoist Installation and Concrete Specifications

Installing a car hoist requires careful consideration of the appropriate concrete thickness to ensure both safety and stability. Below, we address some common questions related to the concrete requirements for various types of lifts, providing clarity for prospective customers.

What is the minimum concrete thickness recommended for a two-post lift installation?

For a two-post lift, the suggested minimum thickness for the concrete slab is 100mm. This depth provides adequate strength to support both the weight of the vehicles and the lift itself. Always consult the manufacturer's specifications, as certain models might require thicker slabs for safe operation, ensuring compliance with safety standards.

What specifications must a concrete slab meet for a four-post hoist installation?

Typically, a four-post hoist necessitates a concrete slab thickness ranging from 100mm to 150mm. The slab must be level and free of any cracks to ensure effective and safe operation. It is wise to have a professional evaluate your floor to confirm that it meets the hoist’s installation requirements, ensuring peace of mind and safety.

Is it safe to install a car hoist on a concrete floor that is less than 100mm thick?

Installing a car hoist on a concrete floor that is less than 100mm thick is strongly discouraged. Such thin slabs are prone to cracking or failure under the weight, leading to significant safety hazards and potential damage to your vehicle. If your existing floor does not meet the required thickness, it may be necessary to add a new layer of concrete to achieve the appropriate depth for safe operation.

What slab thickness is generally recommended for vehicle lift systems?

Most vehicle lift systems are best supported by a slab thickness of 100mm to 150mm. This range is suitable for both two-post and four-post hoists, ensuring adequate support and stability. For heavy-duty lifts or those intended for commercial use, it may be necessary to consider an even thicker slab to ensure safety and stability during operation, providing confidence in your installation.

What weight can a 100mm thick concrete floor support during hoist operations?

A concrete floor that is 100mm thick is generally capable of supporting the weight of most passenger vehicles and light trucks when used with an appropriate hoist. However, the specific weight limit will depend on the concrete mix and reinforcement used. It is advisable to consult with a structural engineer for detailed load ratings tailored to your unique situation and requirements, ensuring safety and reliability.

What factors should be considered when determining concrete thickness for heavy lifting equipment?

When calculating the appropriate concrete thickness for heavy lifting equipment, consider the following critical factors:

1. The weight of the heaviest vehicle you plan to lift
2. The type of hoist being installed
3. The soil conditions beneath your concrete slab
4. Any additional loads from tools or equipment that may be used alongside the hoist

Seeking professional guidance from our experts at Metro Booths is a smart choice. We can assist you in evaluating your site and ensuring the correct installation and setup of your hoist to maximize safety and efficiency, providing you with the confidence you need for your garage projects.
